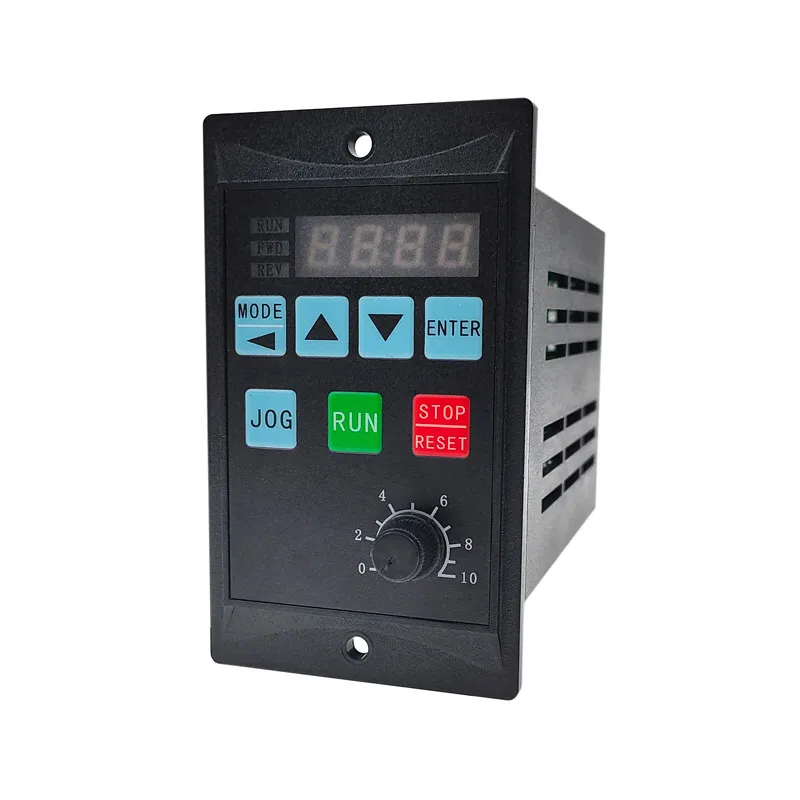

1500W Frequency Converter Electric Inverter RS485 Add Motor Driver 0.75KW MCU Single Phase Input 220V 3-Phase Output 0.4KW 1.5KW

Note:These mini frequency converters are not recommended to operate at full load, for example, 1500W frequency converters should be operated below 1500W as much as possible, otherwise it may cause excessive temperature.

Electric Inverter User Manual

Chapter I Overview

This manual is intended for installation, commissioning, maintenance and use by the user.

————————————————————————————————————————

1.Unpacking inspection
Remove the Inverter from the box and confirm that: Whether the product appearance is damaged or

deformed: Whether the components are damaged or fall off: Observe the rating of the nameplate on

the chassis side and check whether it is consistent with your order requirements:
Check whether the items listed in the packing list box are complete. If there is any doubt about the

product damage, please contact the supplier immediately.

————————————————————————————————————————

2.Please read it carefully before use and keep it properly.

————————————————————————————————————————

3.Use environment.
Power supply : Single input AC220V±40%

Temperature: -10℃- 50℃

Humidity: 0% – 65%

————————————————————————————————————————

4.Precautions
When wiring, the power supply must be turned off.
Make sure that AC power is never connected to the motor output.

————————————————————————————————————————

5.There is no condensation, dust and corrosive liquid/gas on the site.

————————————————————————————————————————

6.The installation position shall be firm and free from vibration.

————————————————————————————————————————

7.As the overall size is small, please handle the wire ends properly.

————————————————————————————————————————

8.If the ambient temperature is high, please leave enough heat dissipation space.

————————————————————————————————————————

Chapter II Installation and wiring

                              Opening size: 52.5mm*80mm*130mm
