Pure Sine Wave Inverter DC 12v/24v To AC 110V/220V 1000W 1600W 2000W 3000W Portable Power Bank Converter Solar Inverter

₦63,492.00 – ₦161,408.00

  Ask a Question
Add to wishlist
CompareCompare
SKU:4000750906935
  • is_customized: Yes
  • Output Current: 1.8-6.8A
  • Output Frequency: 50HZ/60HZ
  • Weight: 800w 1kg 1600w 1.2kg 2200w 1.55kg 3000w 1.8kg
  • Size: 26CM11CM6CM
  • Output Type: single
  • Output Power: Other
  • Model Number: Pure Sine Wave Inverter 800W 1600W 2200W 3000W
  • Type: DC/AC Inverters
  • Brand Name: NoEnName_Null
  • Origin: Mainland China
  • Certification: CE
  • Place of production: Made in China pure sine wave
  • Voltage: DC 12V 24V to 110V 220V
  • Output waveform: pure sine wave inverter

Hello, dear buyer. Our inverters are all in stock. We will ship the goods within 24 hours after placing the order. Thank you!

(If you encounter any problems when using the inverter, please contact us at any time. thank you!)

Our pure sine wave inverter, waveform test show.

When buying an inverter, you must first understand the voltage and frequency used in your country. Purchasing an inverter according to the frequency of your country will greatly improve the conversion efficiency of the inverter. If you have any questions, please contact us before purchasing. Thank you!

Country /Voltage/Frequency
Korea:220V/60Hz
Australia:230V/50Hz
Brazil:110V/220V/60Hz
Chile:220V/50Hz
Colombia:110V/60Hz
Denmark :230V/5oHz
Finland:230V/50Hz
France:230V/50Hz
Israel:230V/50Hz
Italy:230V/50Hz
Russia:220V/50Hz
United States:120V/220V/60Hz
Turkey:230V/50Hz
Spain:230V/50Hz
Mexico:127V/60Hz
PuertoRico:120V60Hz
SaudiArabia:127V/220V/60Hz
South Africa:220V/230V50Hz
Sweden: 230V/50Hz
Switzerland:230V/50Hz
United Kingdom:230V/50Hz

The benefits Pure Sine Wave Inverter

Specifications:
Type: Pure Sine Wave Inverter
Output voltage waveform: Pure sine wave
Power: 1000W / 1600W / 2200W /3000W
Output voltage:110V / 220V
Input voltage: 12V / 24V
Output frequency: 50Hz / 60Hz
Socket: Universal(Commonly used in sockets in all countries)
Packaged included:
1 x Pure Sine Wave Inverter
1 x English User manual
1xCertificate of conformity
1 x Battery thick line
1 x battery clip

When using 12V / 24V to connect the cigarette lighter wire in the car, please do not exceed 300W (12V car). 400W (24V truck).
If this power is exceeded, please connect the battery output to the inverter, otherwise the car fuse will blow.

High voltage protection:
12V inverter can only connect to 12V batteries (working voltage range: 10.5V~15.5V), 24V inverter can only connect to 24V batteries (working voltage range: 19.5V~28V) 48V inverter can only connect to 48V batteries (working voltage range: 42V~53V) 60V inverter can only connect to 60V batteries (working voltage range: 57V~70V), When the voltage exceeds the working voltage range, the inverter will automatically turn off the inverter because the voltage is too low or too high. The purpose is to avoid over voltage damage to the inverter or over discharge to damage the battery.

Note:
The input voltage of 12V inverter and 24V inverter cannot be universal. If the wrong input voltage is selected, the inverter will not work. If you don’t understand anything, please contact customer service, we will reply you as soon as after we see the information. Thank you!

Features:
The benefits Pure Sine Wave Inverter.
1:Aluminum-magnesium alloy shell, light weight, good thermal conductivity, can quickly reduce the temperature of components, work long hours are not affected.
2: Pure sine wave, intelligent filter, does not interfere with electrical appliances, protects electrical appliances. With high conversion efficiency (up to 95%), the low power consumption of the product itself can greatly extend battery life.
3:You can use electrical equipment, including TV / LED lights / LCD displays, especially inductive load appliances.
4:Pure sine wave inverter, 110V / 220V for city power supply and power quality, so it has.
5: Eight-bit intelligent protection: overload protection, high voltage protection, low voltage protection, overheating protection, reverse connection protection, short circuit protection, overcurrent protection, insurance protection,Intelligent chip control, perfect protection.
6:Buzzer reminder. Once any protection of the inverter is triggered, the inverter will immediately disconnect the power, the load enters the protection mode and reminds people with a buzzer reminder.

Free Returns:
We support free local returns within 15 days after receipt in 16 countries. If you are dissatisfied with our product, contact us and you can return the product without paying any shipping costs. We will give you full refund immediately after receiving the goods in the warehouse.
16 Free Local returns countries : Russia, Spain, France, Poland, United Kingdom, Germany, Italy, Netherlands, United States, Canada, Brazil, Australia, Israel, South Korea, Saudi Arabia, United Arab Emirates.

One inverter can be used for multiple purposes: home, solar, car, outdoor

Solar power to AC 110V / 220V circuit display diagram

Pure sine wave inverter 3000W

Peak power 3000W
Continuous power 1500W
Size: 26CM × 11.3CM × 6CM
Package weight 1.8kg

Pure sine wave inverter 2200W

Peak power 2200W
Continuous power 1100W
Size: 25CM × 11.3CM × 6CM
Package weight 1.55kg

Pure sine wave inverter 1600W

Peak power 1600W
Continuous power 800W
Size: 21CM × 11.3CM × 6CM
Package weight 1.2kg

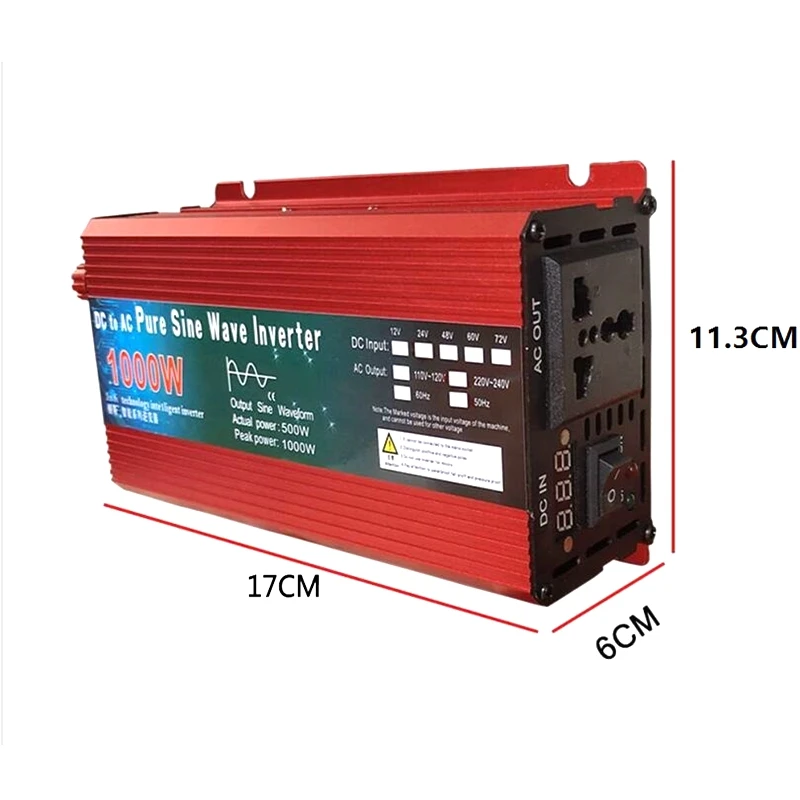

Pure sine wave inverter 1000W

Peak power 1000W
Continuous power 500W
Size: 17CM × 11.3CM × 6CM
Package weight 1kg

The inverter has peak power and continuous power,the continuous power is half of the peak power.
1000W inverter,continuous power is 500W,peak power is 1000W.
1600W inverter, continuous power is 800W, peak power is 1600W.
2200W inverter, continuous power is 1100W, peak power is 2200W.
3000W inverter, continuous power is 1500W, peak power is 3000W.

note:
Our Pure Sine Wave Inverter inductive load capacity is 95%
The battery output DC power requirements for the wire are very high, please do not use the wire to increase the length.
From the battery output to the inverter, use the original wiring. Unauthorized extension of the line may cause insufficient input voltage/current. If you want to use the extension line, the wire diameter must be twice as thick as the original wiring. It is recommended not to exceed 1 meter.
How long does the battery last?
Car battery, general family car voltage is 12V, truck
The battery voltage is 24V, and the inverter with the corresponding voltage is selected.
1. Formula for calculating battery power: p (power) = U (voltage volts) | (battery weight)
2, such as the car 12V80AH battery, its power output power = 12V * 80 = 960W inverter conversion efficiency is 90?
Using 960*90?, you can calculate the battery with a maximum power of 864W.
Working time = U (voltage volts) * 1 (battery capacity) * 0.8 * 0.9
Electrical power example:
Battery 12V80AH battery with a 220V100W bulb
Working time = 12V * 80AH * 0.8 * 0.9 / 100W = 6.912 hours
Note: 0.8 is the battery discharge coefficient (constant)
0.9 is the inverter conversion efficiency (constant)

Working principle of inverter
A power conversion device that converts input low-voltage direct current into high-voltage stable alternating current output.
Instructions:
The output volts of the battery should be consistent with the DC input volts of the inverter. For example, a 12V inverter should be selected for a 12V battery, and the positive and negative poles of the battery should be distinguished when connecting.
H (working time) = U (voltage volts) × I (battery capacity) × 0.8 × 0.9 ÷ electrical power
Precautions
1.The inverter cannot be connected to the power grid and cannot be used to touch the AC output line. The battery equipped with the inverter can provide more power than the actual power consumption of the appliance. When the battery line is lengthened, the corresponding wire diameter must be doubled Crude.
2.Both of the inverter outputs are live wires, and there is no grounding problem. Do not use any one as a ground wire.
3.Connect the inverter to the load. Do not connect any air switch or leakage protection switch in the middle. Hard operation will not only fail to protect, but will damage the inverter.
Troubleshooting
1.The inverter is not working.
A.Check whether the plug is inserted in place and whether it is loose.
B.Whether the inverter switch is turned on.
C.Whether the car cigarette lighter jack has voltage output, such as external leads, and whether the polarity is correct.
2.Insufficient output power of the inverter can only drive low-power electrical appliances
A.The capacity of the battery is too small, and electrical appliances must be replaced or reduced.
B.The battery voltage is too low and must be charged or replaced.
C.If you change to another car, the inverter is normal, and you need to go to a professional repair shop to thicken the car cigarette lighter jack cable. The use of the cigarette lighter socket shall not exceed a load of 150W.
D.If it is an external battery, thicken the lead to shorten the lead length
3.The inverter does not work and the FALT light is off
A.The electrical power used exceeds the nominal power, causing protection. Reduce the use of electrical power
B.The battery voltage is too low, the battery must be charged or replaced
C.Reduce the use of power appliances
