RisingCam 4K UHD 30fps bulit-in SONY imx678 1/1.8″ sensor HDMI and USB output digital industrial microscope camera with C mount

RisingCam 4K UHD 30fps bulit-in SONY imx678 1/1.8" sensor HDMI and USB output digital industrial microscope camera with C mount

Model No. YW5605E

YW5605E is a multi-functional and multi-interface camera. It supports functions of a regular HDMI interface camera (mouse operation to take photos, videos, measurements, etc.) and also has a 4K USB camera function, which can be used to meet the different needs of multiple fields.

Install SONY imx678 Sensor, senzor size:1/1.8"

Resolution: 4K (3840×2160)

Max frame rate: 4K / 30fps (HDMI & USB output)

Capture photo resolution: 4K (3840×2160)

Standard C mount

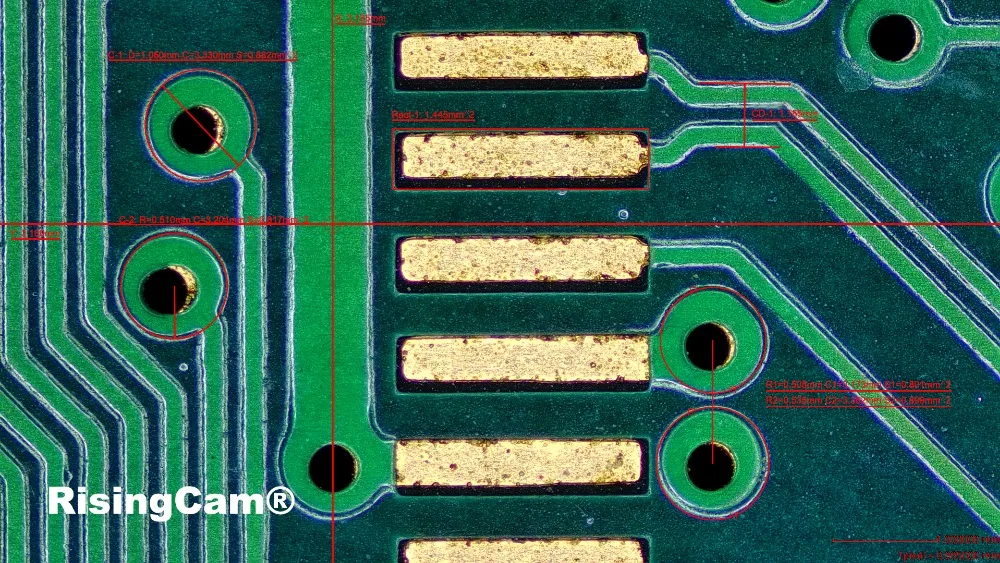

Real time measurement

HDMI，USB，output

Camera’s USB output support UVC, it can work with computer

Full HDMI 4K@30FPS
Sony High sensitivity CMOS sensor

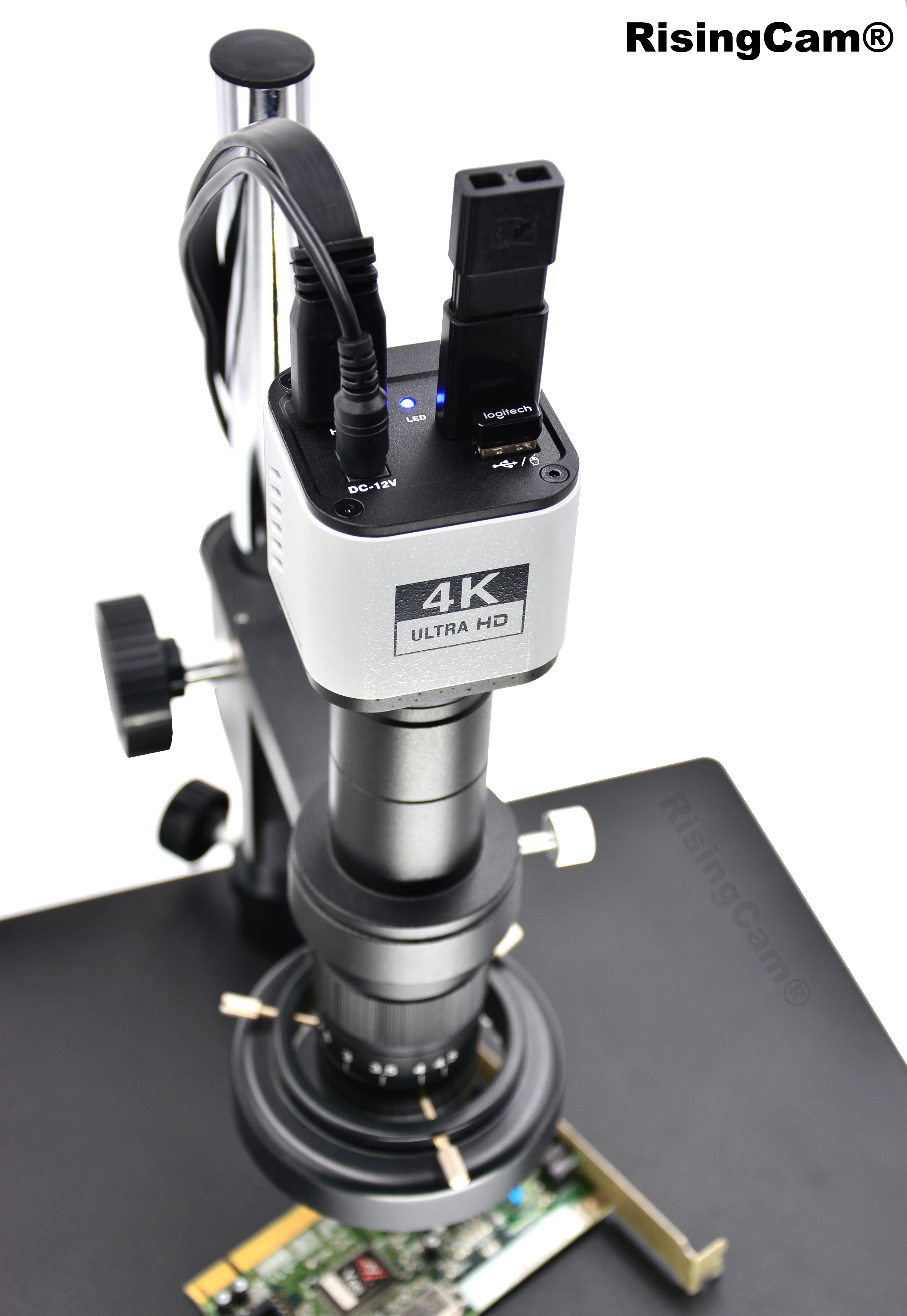

The camera uses HDMI cable to connect to the
HD monitor. The dual USB ports of the camera can

be connected to a mouse and USB drive to achieve
the image capture or recording, no need to connect

to computer。

The USB cable of the camera can connect to
computer, which can achieve HDMI and USB
sync output.

The camera can start within 5-second. With
user-friendly UI interface, so that it’s easy to operate even it’s first time to use it.

Easy USB Mouse Control, USB flash disk storage, Max frame rate: 30fps

HDMI output

YW5605E Camera can work under HDMI output to TV monitor

The follow picture is camera UI on TV monitor

Other Feature Function

Digital Zoom in 10X

Image comparison

2 image compare – one is Realtime image, other one is picture captured by camera.

The picture on the left is a real-time picture, and the picture on the right is a picture taken by the camera. The mouse wheel can zoom in and out of the picture, and holding down the wheel can drag the picture to change the position.

4 image compare –After clicking the four-picture comparison button, the screen is divided into four parts. Double-clicking on a part can freeze the current image. Up to 4 images can be frozen for comparison. The mouse wheel can zoom in and out of the picture, and you can drag the picture to change the position

Gridlines –8 horizontal lines, 8 vertical lines, position, color, Line width adjustable

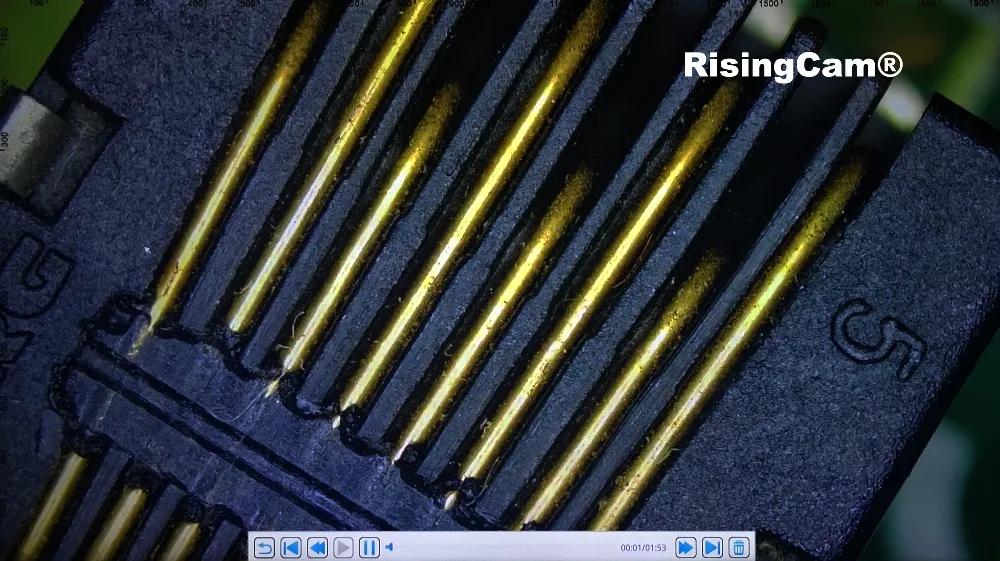

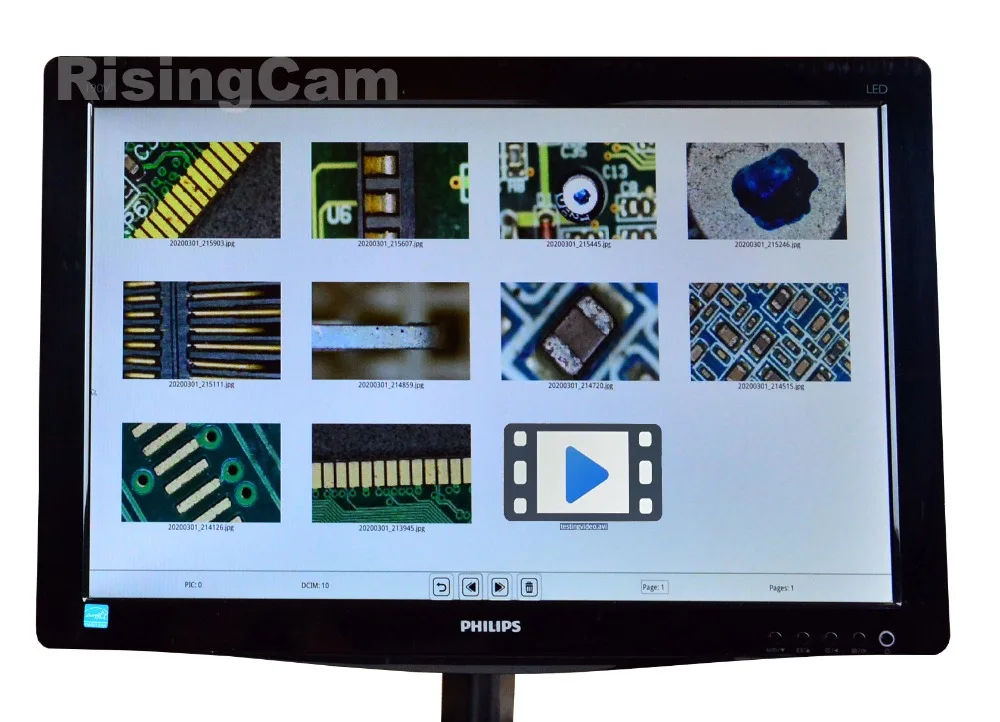

Double click the picture or video, camera will replay the picture or video on monitor

Preview and Record max Frame rate 60fps. the video and pictures can be Replay on monitor

Camera working with Computer under USB output

RisingCam YW5605E Camera has USB output, it support UVC, it can work with computer

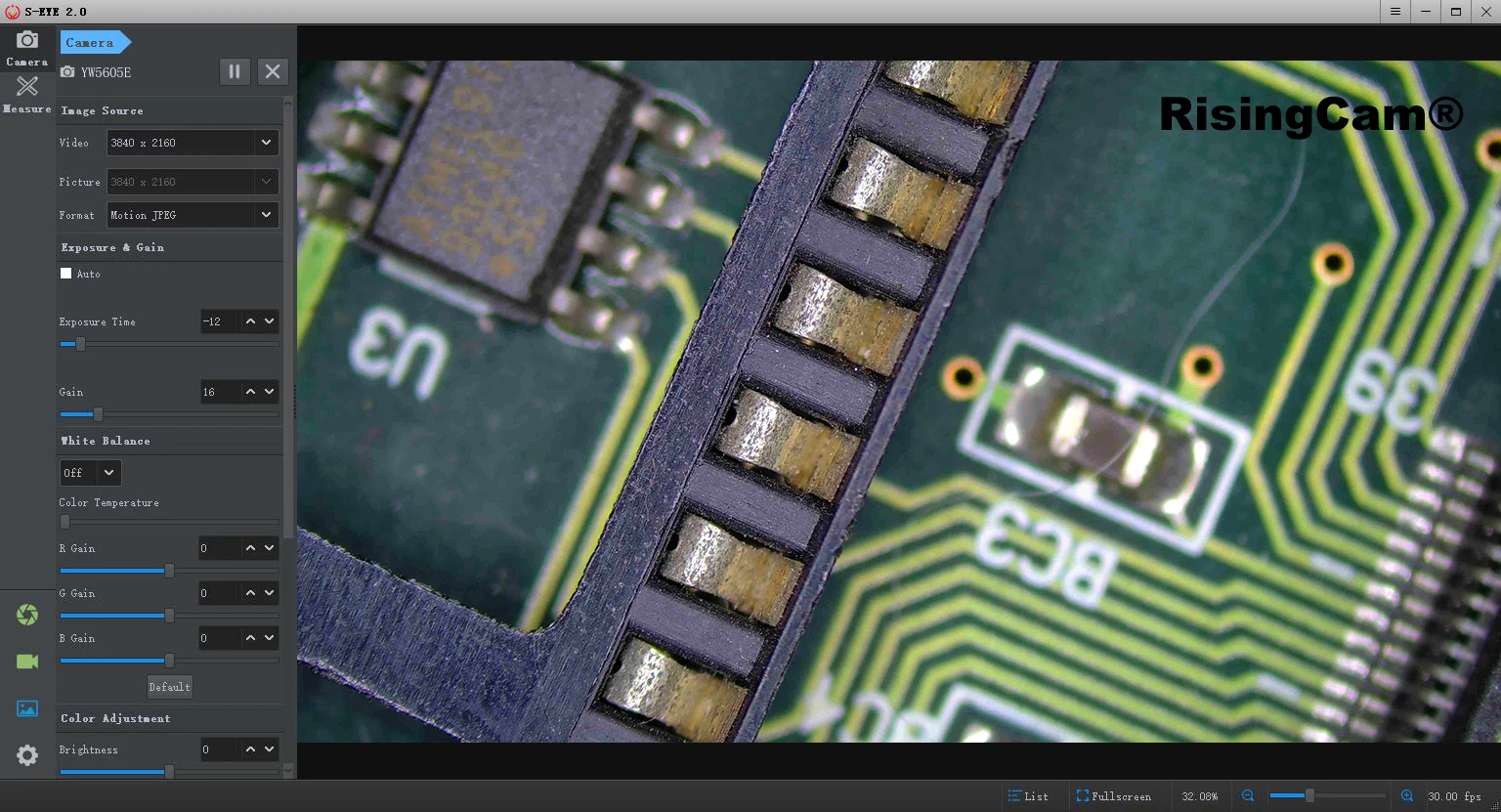

RisingCam provide S-EYE2.0 software for buyers, S-EYE2.0 only support Windows system

buyers could download S-EYE2.0 software from this link:

https://drive.google.com/file/d/1O06UL8n1u9YZGsNq4Q6iylhdRajP1hSk/view?usp=sharing

Camera work with Windows Computer connect steps

1. Install S-EYE2.0 software into Windows Computer

2. Connect Camera to Computer via USB cable

3. DC-12V Power in Camera, then camera will keep blue light

4. Start S-EYE2.0 Software, select Camera model number, then user can see image from camera

NOTE:
1. if user use Laptop, please Make sure Windows system not disable the camera,and,

please select laptop battery option to High performance (The Power Saver maybe limit USB transmit)

Camera USB output support UVC,

it can work with other software which support UVC too,

example OBS

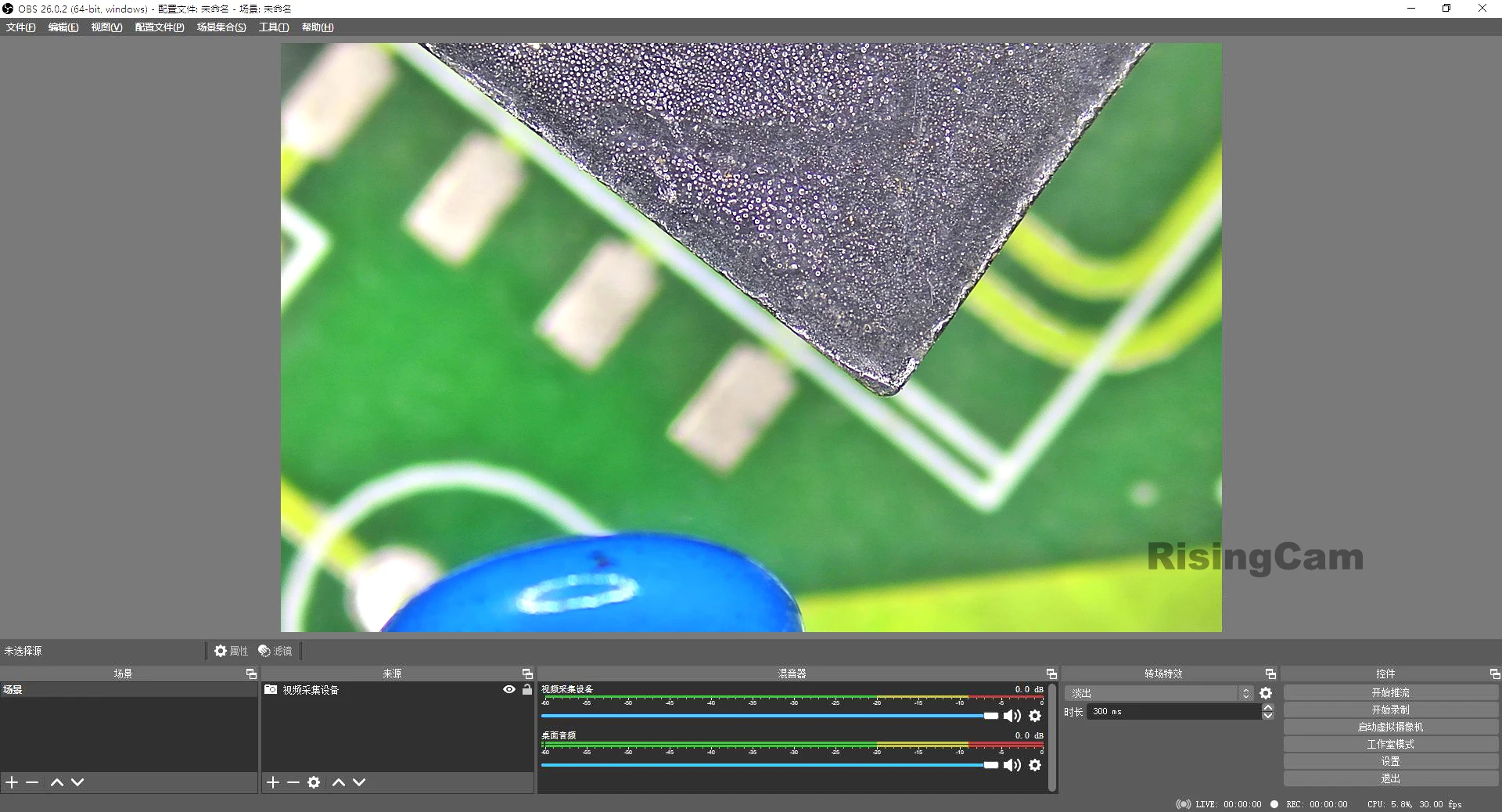

below picture is Camera work in OBS software

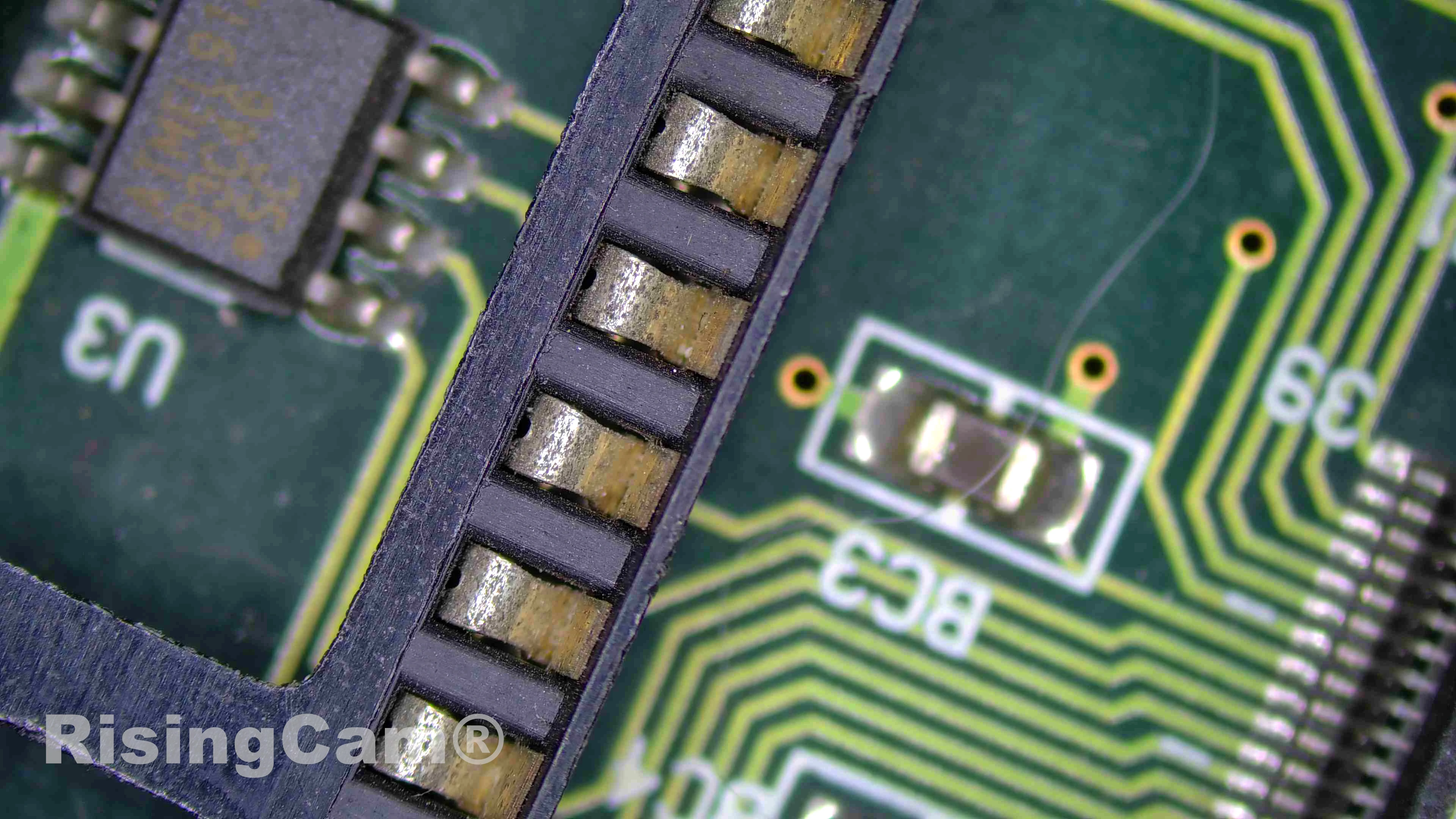

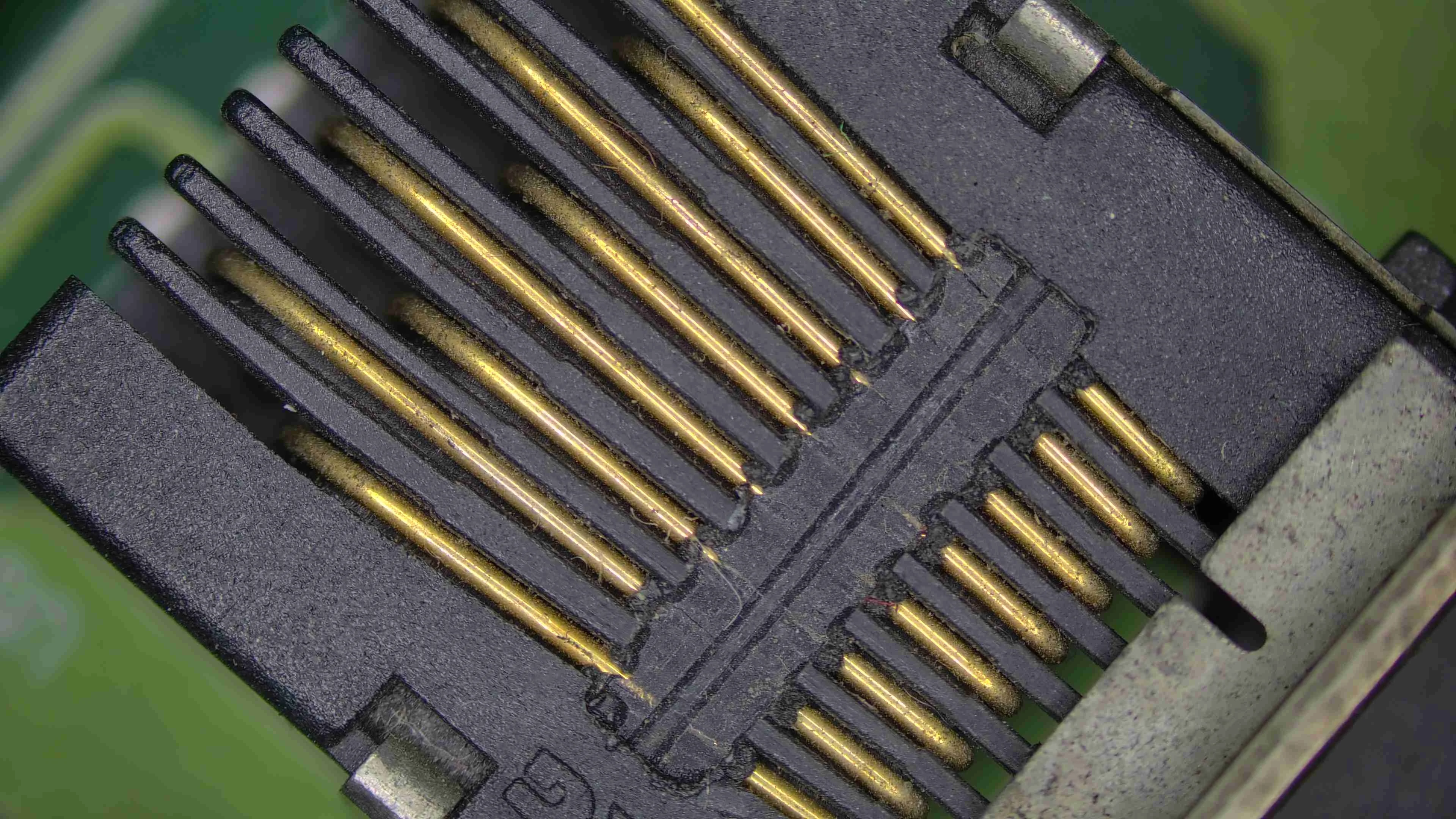

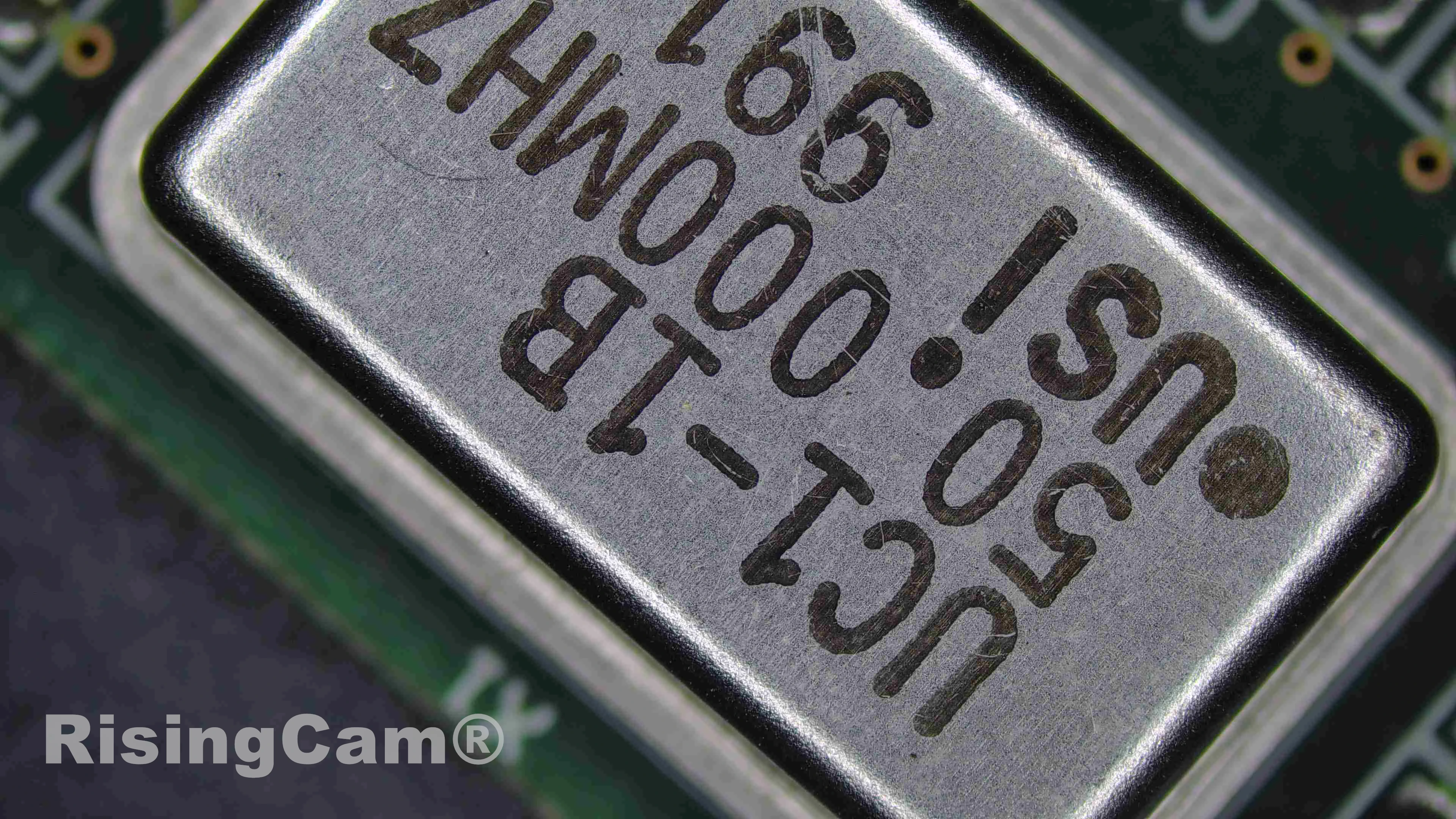

Sample Pictures



The standard packing include

1. YW5605E camera

2. HDMI cable

3. Wireless mouse

4. USB Cable

5. Power Supplier (EU, US and UK for choice)

1 Years
